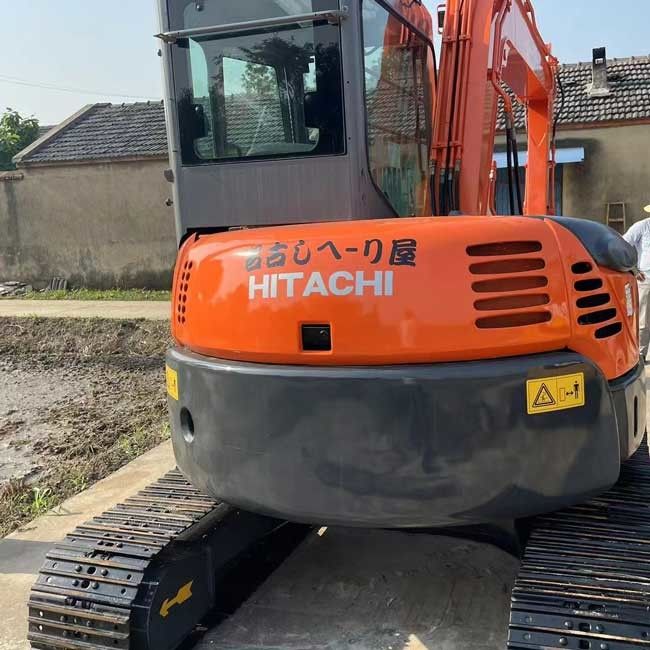

Compact Excavator Used Crawl Excavator HItachi ZX55 0.19m3 Bucket Capacity

Used Hitachi ZX55 Crawl Excavator 0.23m³ Bucket Capacity Little Used Excavator

Product generalization

Hitachi ZX55USR - 5A excavator, as an outstanding representative in the field of small hydraulic excavators, has demonstrated unique advantages in various construction scenarios with its excellent performance and excellent quality.

The working mass of the whole machine reaches 5160kg, and the rated bucket capacity is 0.19m³. This specification enables it to have considerable operating capacity among small excavators and can efficiently complete various earthwork excavation tasks. It is equipped with an imported environmentally friendly engine. The engine adopts advanced technology. It is not only powerful and can meet the power requirements of complex working conditions, but also meets strict environmental protection standards, effectively reduces exhaust emissions, and is more green and environmentally friendly. The matching high-performance hydraulic system realizes precise motion control and efficient power transmission, ensuring smooth operation. Whether it is delicate excavation operations or high-intensity continuous construction, it can easily cope with it. At the same time, the system also has excellent energy-saving characteristics, which can significantly reduce fuel consumption and save operating costs for users.

The application range of Hitachi ZX55USR - 5A excavator is extremely wide. In municipal construction, it can flexibly shuttle through city streets to complete tasks such as trench excavation in the early stages of pipeline laying and debris cleaning after the demolition of small urban buildings; in land leveling projects, it can accurately excavate, bulldoze and fill the land to achieve the ideal flatness; in agricultural and forestry transformation projects, whether it is reclaiming new farmland, digging irrigation ditches, or improving the land in orchards and forest farms, this excavator can rely on its own advantages to efficiently complete the task and become a capable assistant to the construction team.

Components overview

Hitachi ZX55USR-5A excavator is a small hydraulic excavator with a working weight of 5160kg and a rated bucket capacity of 0.19m³. It is equipped with an imported environmentally friendly engine and a high-performance hydraulic system. It has strong power, smooth operation and low fuel consumption. It is suitable for municipal construction, land leveling, agricultural and forestry transformation and other projects.

Main components

The engine model is Yanmar REDM-4TNV88, which is a 4-stroke, water-cooled, direct-injection engine with a rated power of 28.1kW/2400rpm, a displacement of 2.189L, and a maximum torque of 139.6N·m/1100rpm.

The main pump type is a variable axial piston pump with a maximum flow of 120L/min, a working hydraulic oil circuit pressure of 24.5MPa, a travel hydraulic circuit pressure of 24.5MPa, a rotary hydraulic circuit pressure of 18.3MPa, a pilot oil circuit pressure of 5.9MPa, and a pilot pump flow of 12L/min.

It adopts crawler walking, with a crawler shoe width of 400mm, a crawler gauge of 1600mm, a total crawler length of 2490mm, a high-speed walking speed of 0-4.0km/h, and a low-speed walking speed of 0-2.3km/h.

The boom cylinder is 1×95×699 (number×cylinder diameter×stroke, unit mm), the dipper cylinder is 1×80×551, and the bucket cylinder is 1×75×551. The maximum digging depth is 3550mm, the maximum unloading height is 4050mm, the maximum digging height is 5730mm, and the maximum digging radius is 5960mm.

The interior space is spacious and equipped with facilities such as air conditioning and heaters. The operation switches are centrally arranged, and the large monitor and switch panel are centrally set on the right side of the operator for easy viewing and operation.
