HItachi 12.5Tons ZX130-5A Crawl Middle Excavator Second-Hand Machine

Used Hitachi ZX120-5A Crawl Excavator 0.52m³ Bucket Capacity Compact Used Excavator

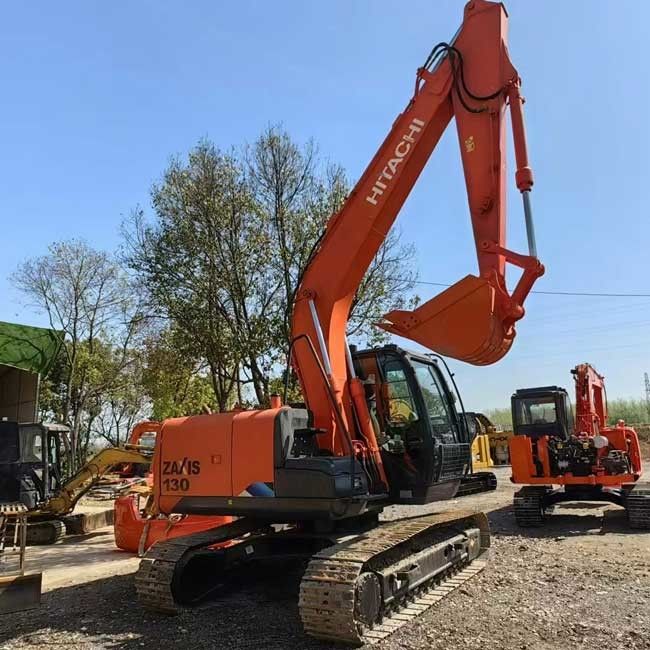

Hitachi ZX130-5A excavator is a medium-sized excavator with excellent performance.
Equipped with the original imported Isuzu GJ-4JJ1XKSA-03 engine with rated power of 69kW/2000rpm, adopting high-pressure common-rail EFI system and cold EGR system, it meets the National III emission standard, with strong power and high fuel efficiency.

Adopting Hitachi HIOS Ⅲ hydraulic system, equipped with “digging speed increase system” and “boom regeneration system”, which improves the compound operation speed of boom and bucket, and reduces the fuel consumption, and the main pump and hydraulic parts are precisely adjusted and have fast response speed.

The working weight of the whole machine is 12500kg, the bucket capacity is 0.52m³, the digging force of the bucket is 104kN, the digging force of the bucket bar is 69kN, the maximum digging radius is 8300mm, the maximum digging depth is 5540mm, which is adaptable to a variety of complex working conditions.

The cab adopts ergonomic design, standard equipped with suspension seat, good vibration damping effect, large glass area to provide a wide field of vision, the front window, left window, top window can be opened, monitor, air conditioning switches, etc. layout on the right side, easy to operate.

Fuel main filter, fuel pre-filter, pilot filter, oil filter and electric fuel pump are centralized in the pump room, which is convenient for daily maintenance. The cooling system adopts a new type of expansion tank, which can automatically exhaust air to prevent body cavitation and reduce the frequency of coolant refilling.

The engine produces a stunning maximum output of 69 kW, with power peaking at 2,000 revolutions per minute. This powerful output ensures that the engine performs consistently and efficiently in all operating conditions.At 1,600 rpm, the engine produces a maximum torque of 354 Nm, ensuring outstanding power and excellent acceleration.

With a displacement of 2.999 litres, this engine is able to achieve a good balance between fuel economy and environmental performance while ensuring sufficient power.Equipped with four cylinders, it is designed with a 95 mm bore and 105 mm stroke, which helps to improve the engine's combustion efficiency and thus achieve higher performance.

The engine features an advanced water-cooling system that ensures optimum operating temperatures are maintained in a variety of operating environments, thereby increasing its reliability and durability.

The engine features four-stroke, water-cooled, electronically controlled direct injection technology. Electronically controlled direct injection makes fuel injection more precise and further improves combustion efficiency, thus enhancing engine performance and fuel economy. Overall, with its efficient design and technology, this engine delivers excellent performance and efficiency while maintaining good fuel economy and environmental friendliness.
